Build an Airline Dashboard with ToolJet and Couchbase

Overview

In this tutorial, you will build an Airline Dashboard — a fully functional internal tool that lets you browse, search, create, edit, and delete airline records stored in Couchbase. You'll use ToolJet's visual app builder and connect it to Couchbase using the Couchbase marketplace plugin, covering all 6 supported operations.

By the end, you'll have a deployed web app that your team can use immediately — no backend code, no frontend framework, no deployment pipeline required.

What You'll Learn

• How to install and configure the Couchbase plugin from the ToolJet Marketplace
• How to connect to Couchbase via the Data API (both Capella and self-managed)
• How to run SQL++ queries with parameterized arguments
• How to perform CRUD operations (Get, Create, Update, Delete documents)
• How to add Full-Text Search (FTS) to your app
• How to bind Couchbase query results to ToolJet UI components

What You'll Build

An Airline Dashboard with:

• A table displaying airline data from the travel-sample dataset
• A search bar powered by Couchbase Full-Text Search
• A form to create new airline documents
• Edit and delete capabilities for existing airlines
• All connected to Couchbase with zero backend code

Prerequisites

To follow this tutorial, you will need:

• A Couchbase cluster with the travel-sample bucket loaded (see Couchbase Cluster Setup)
• A ToolJet instance — either ToolJet Cloud (free tier available) or self-hosted via Docker (see ToolJet Setup)

Couchbase Cluster Setup

docker run -d --name couchbase-server \
  -p 8091-8096:8091-8096 \
  -p 11210-11211:11210-11211 \
  -p 18091-18096:18091-18096 \
  couchbase:7.6.2

ToolJet Setup

docker run -d \
  --name tooljet \
  -p 80:80 \
  tooljet/tooljet-ce:v3.16.0-LTS

Create an FTS Index

Step 9 of this tutorial uses Couchbase Full-Text Search. Create the index now so it's ready when you need it.

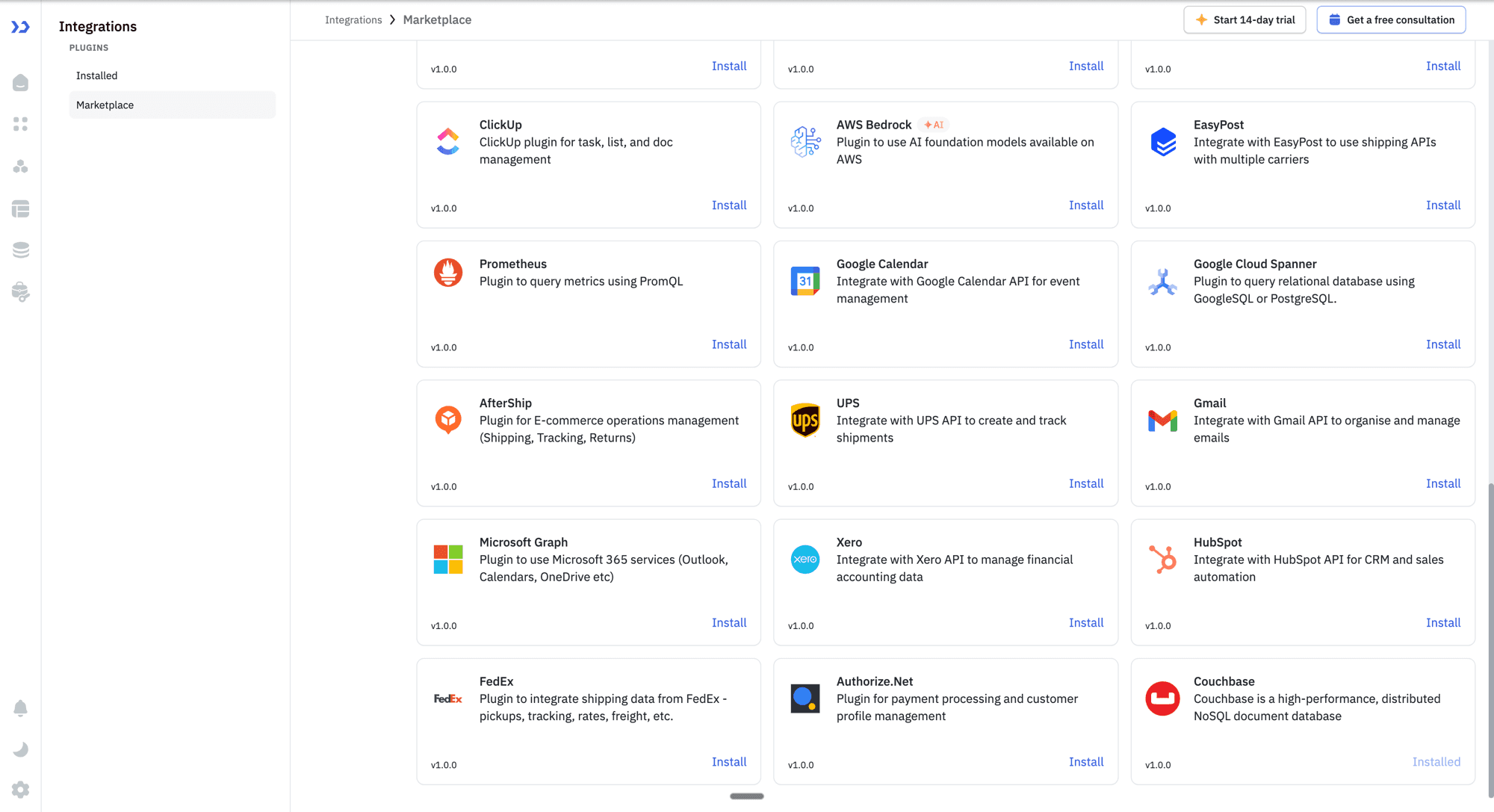

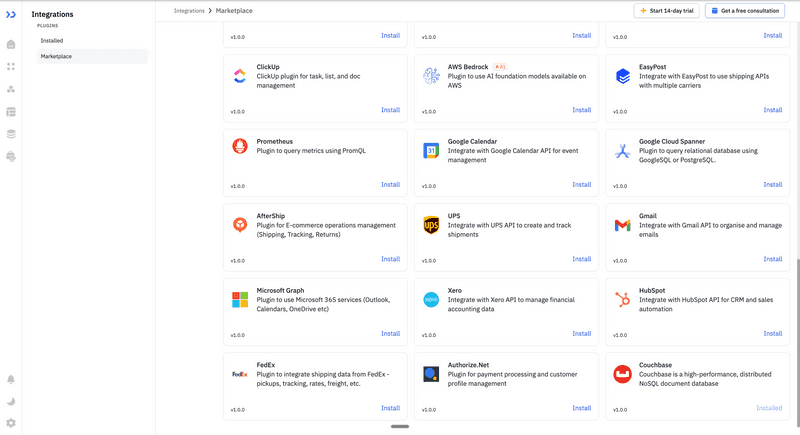

Step 1: Install the Couchbase Plugin

The Couchbase integration is a marketplace plugin — you need to install it first.

1. In ToolJet, click the gear icon (bottom-left) to open Workspace Settings
2. Navigate to Marketplace → Plugins
3. Search for "Couchbase"
4. Click Install

You should see the Couchbase plugin with its red logo appear in your installed plugins list.

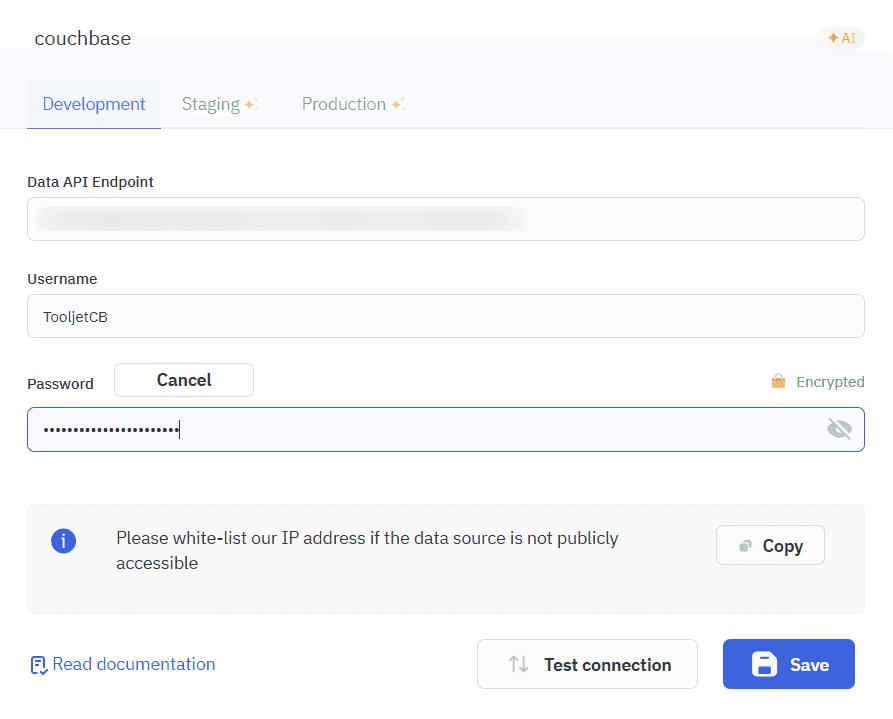

Step 2: Configure the Couchbase Data Source

Now connect ToolJet to your Couchbase cluster:

1. Go to Data Sources (left sidebar, database icon)
2. Click + Add new data source
3. Search for "Couchbase" and select it

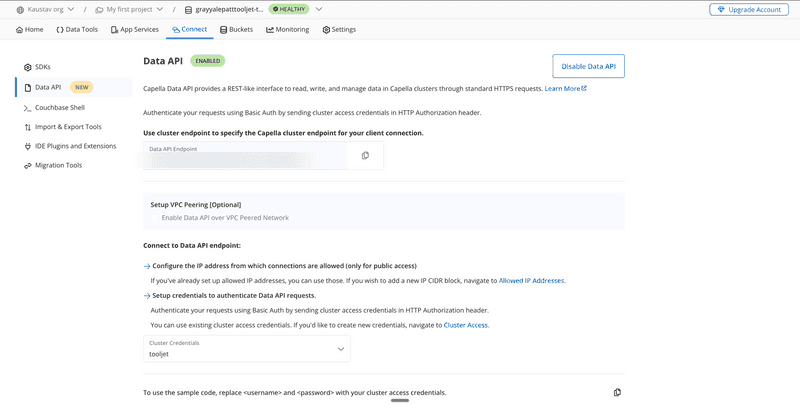

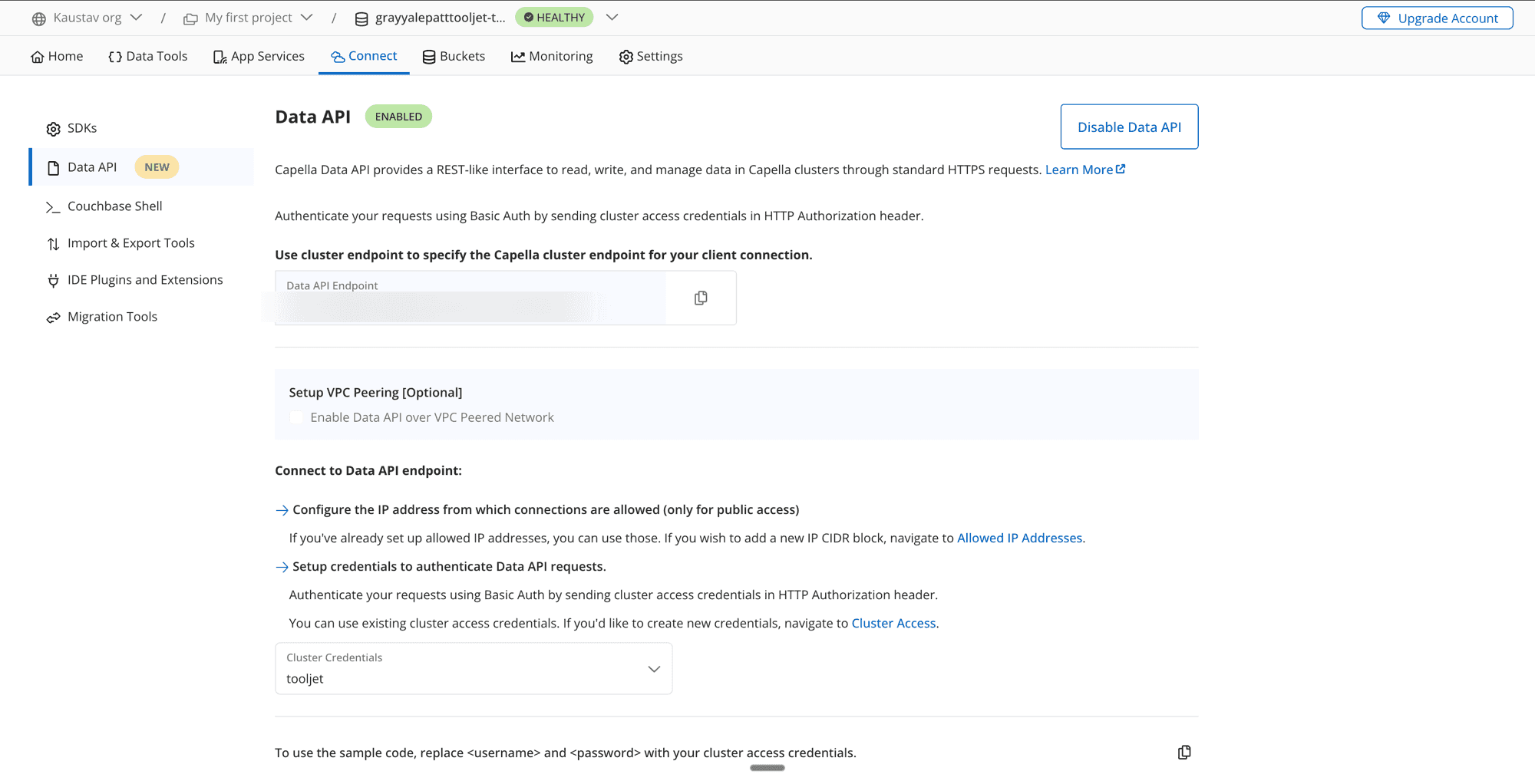

4. Enter your Data API Endpoint, Username, and Password from the prerequisites section
5. Click Test Connection — you should see a green "Connection successful" message
6. Click Save

Step 3: Create a SQL++ Query to List Airlines

Let's fetch airline data from the travel-sample dataset.

1. Create a new app: click + Create new app and name it "Airline Dashboard"
2. In the bottom panel, click + Add → Query → select your Couchbase data source
3. Name the query listAirlines
4. Configure the query:

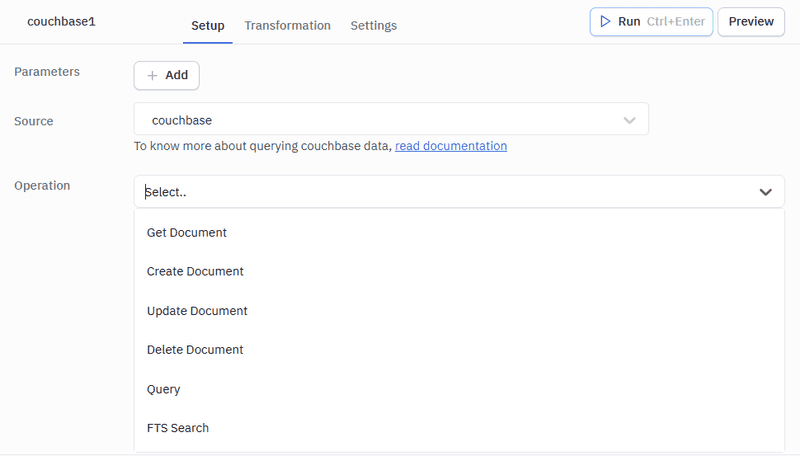

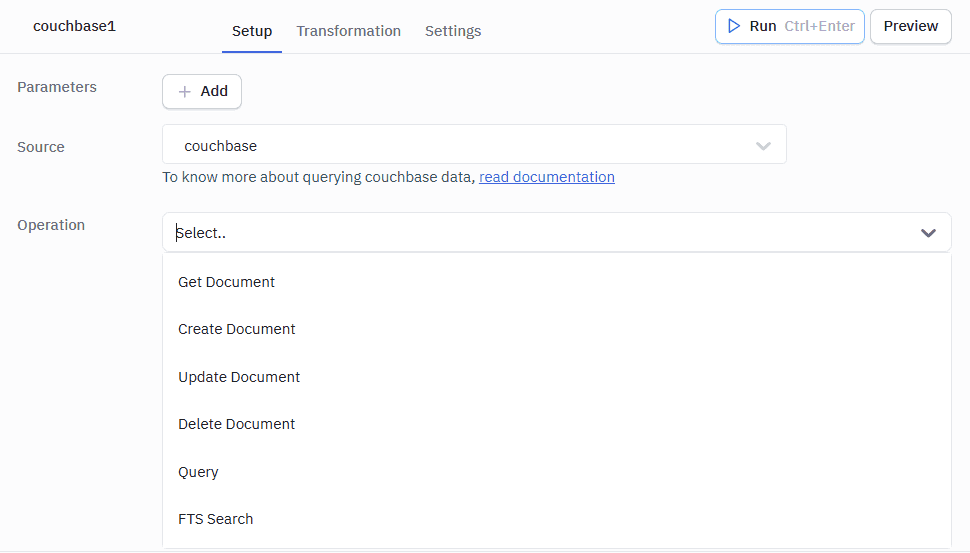

   • Operation: Select Query from the dropdown (see all available operations below)

• SQL++ Query: Enter the following:

SELECT META().id AS doc_id, name, country, callsign, iata, icao
FROM `travel-sample`.`inventory`.`airline`
ORDER BY name
LIMIT 50

5. Click Run to test the query

You should see results in the preview panel — a list of airlines with their names, countries, and callsigns.

How it works: This SQL++ query runs against the airline collection inside the inventory scope of the travel-sample bucket. META().id gives us the document ID, which we'll need for CRUD operations later.

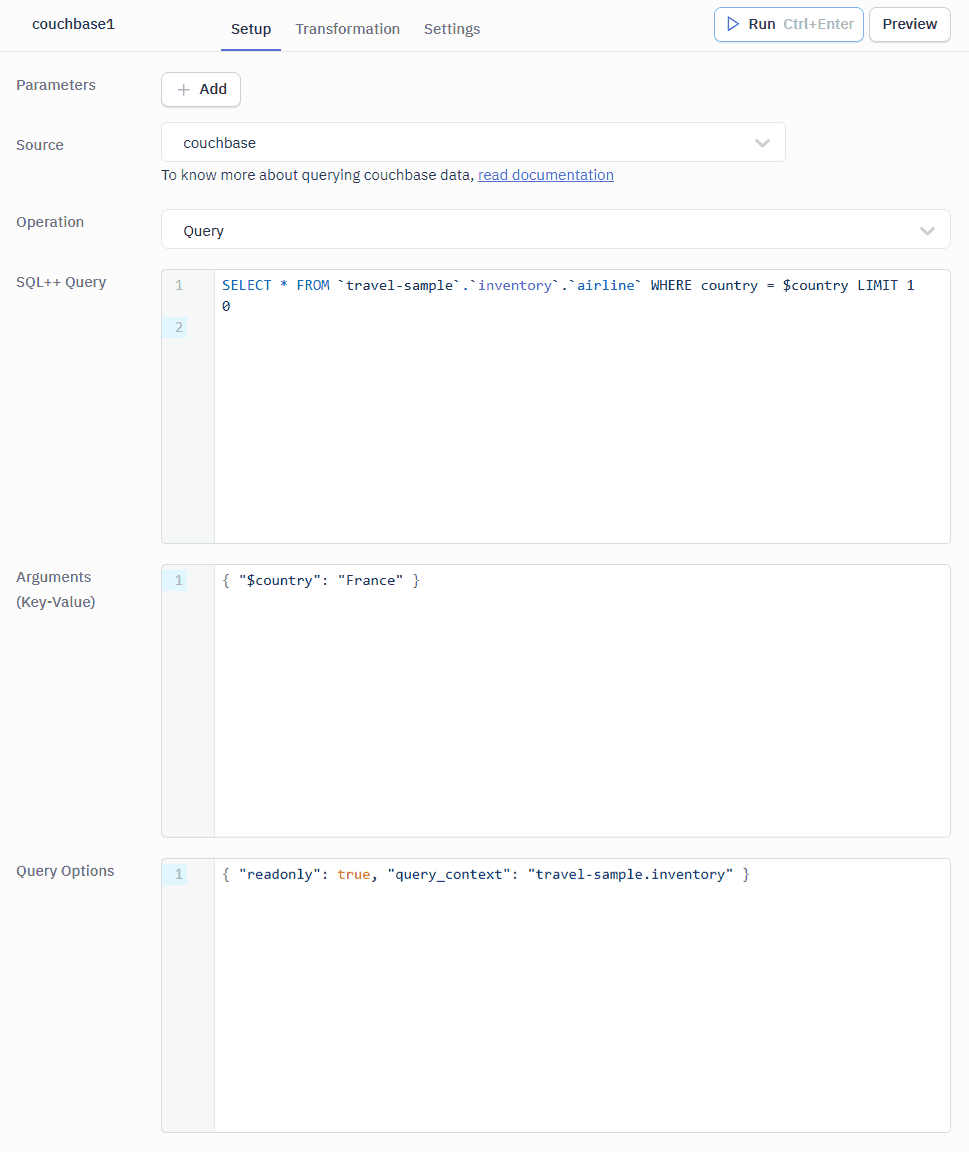

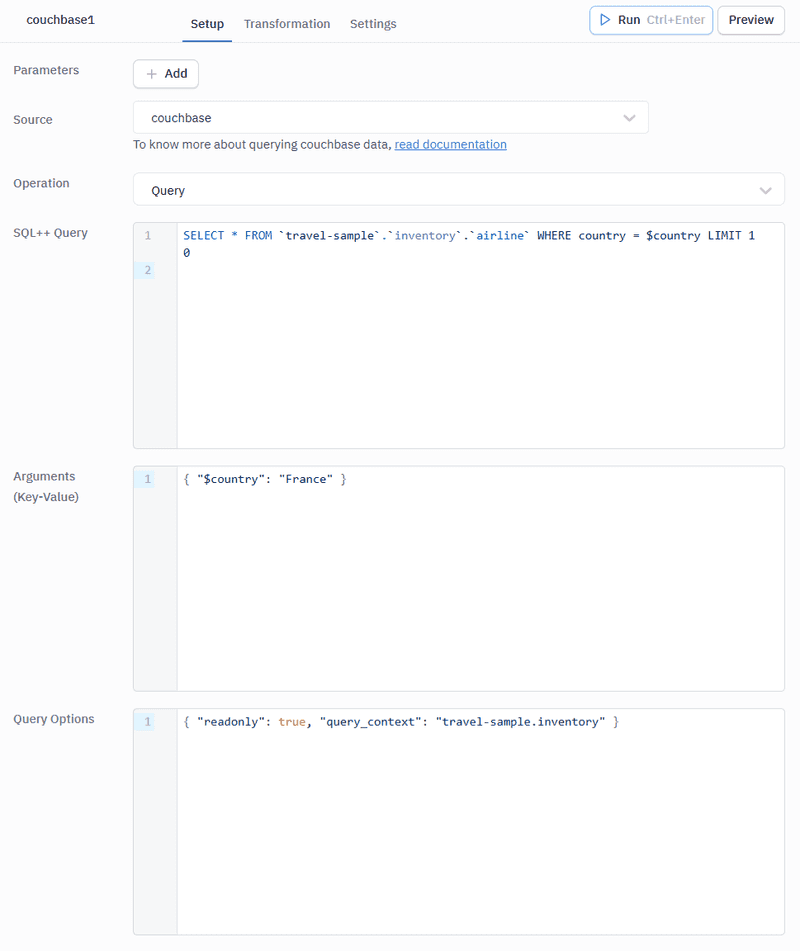

Using Parameterized Queries

Now let's create a second query that uses parameterized arguments — this is the recommended way to pass dynamic values in SQL++ because it prevents injection attacks.

1. Create another query named listAirlinesByCountry
2. Configure it:
   • Operation: Query
   • SQL++ Query:

SELECT META().id AS doc_id, name, country, callsign, iata, icao
FROM `travel-sample`.`inventory`.`airline`
WHERE country = $country
ORDER BY name
LIMIT 50

• Arguments (Key-Value):

{ "$country": "United States" }

3. Click Run — you should see only airlines from the United States

Why parameterized queries? Instead of concatenating user input directly into SQL++ strings (which risks injection attacks), Couchbase's $parameter syntax sends values separately from the query statement. The plugin passes these through the args field in the Data API request body. You can also pass Query Options like { "readonly": true, "timeout": "30s" } for additional control.

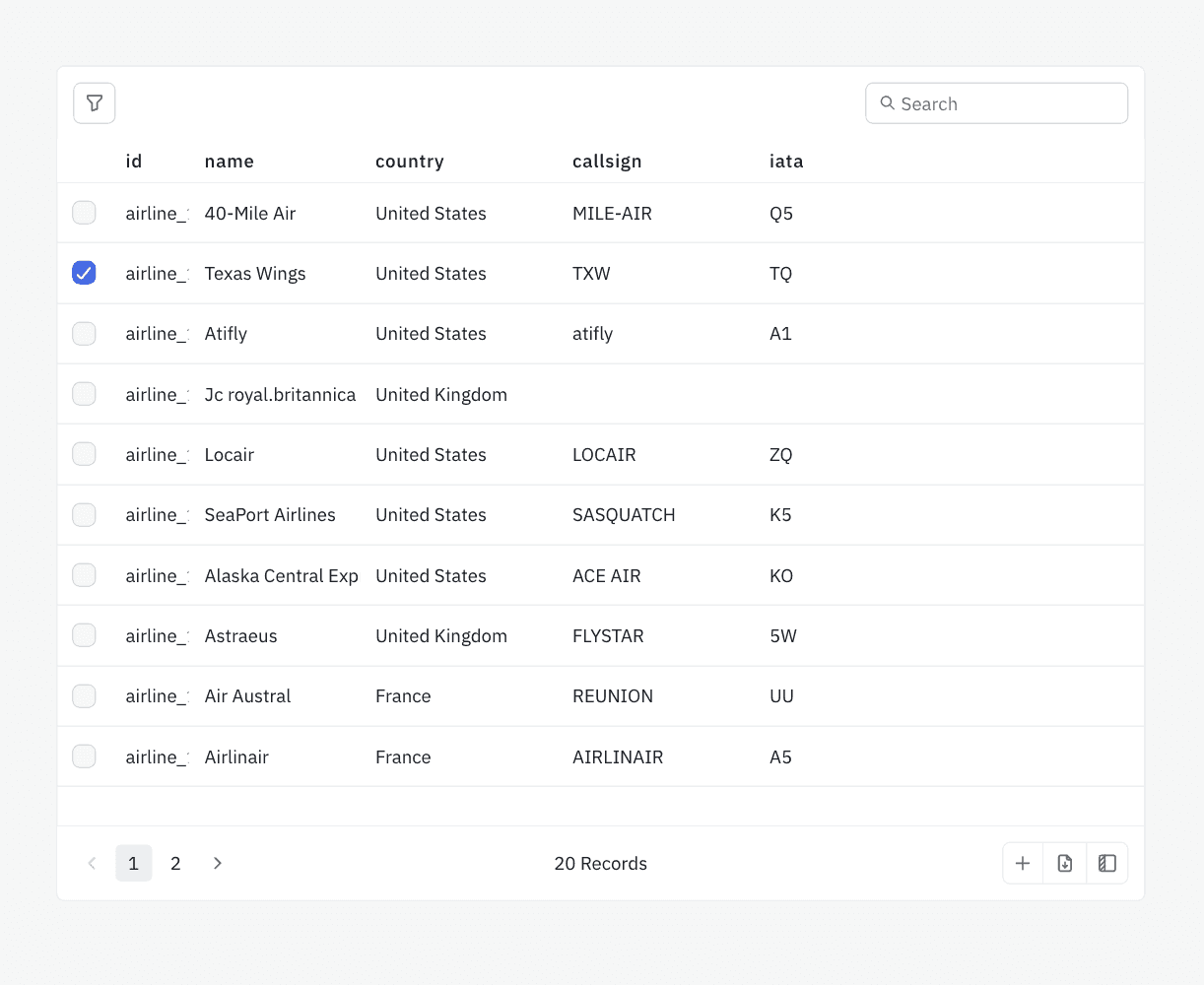

Step 4: Display Airlines in a Table

1. From the Components panel (right sidebar), drag a Table component onto the canvas
2. In the Table's properties (right panel), set the Data field to:

{{queries.listAirlines.data.results}}

3. The table will automatically populate with columns based on the query results

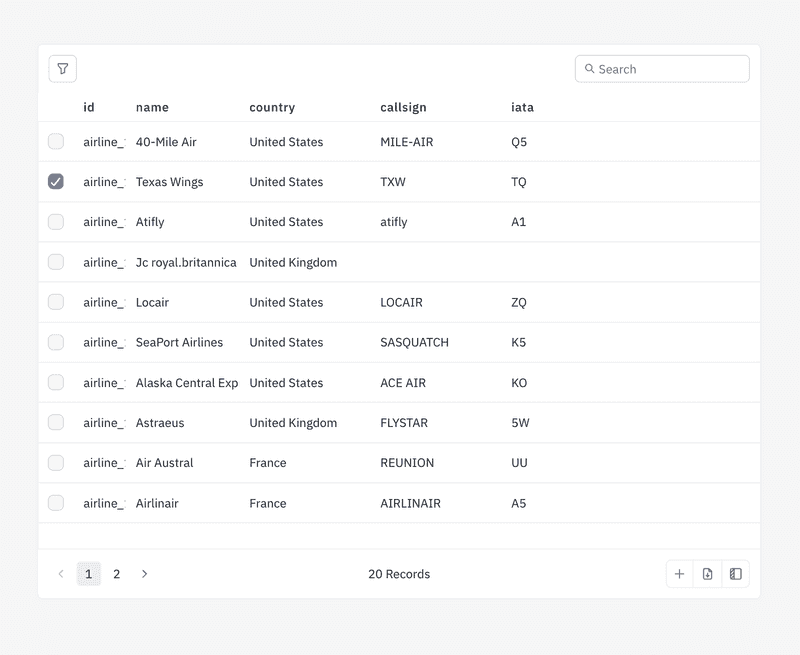

You should now see a table showing airline names, countries, callsigns, IATA codes, and ICAO codes.

Customize the table (optional):

• Click on individual columns to rename headers (e.g., doc_id → "Document ID")
• Hide the doc_id column if you don't want users to see it (but keep it — we'll need it later)
• Enable sorting and filtering on columns

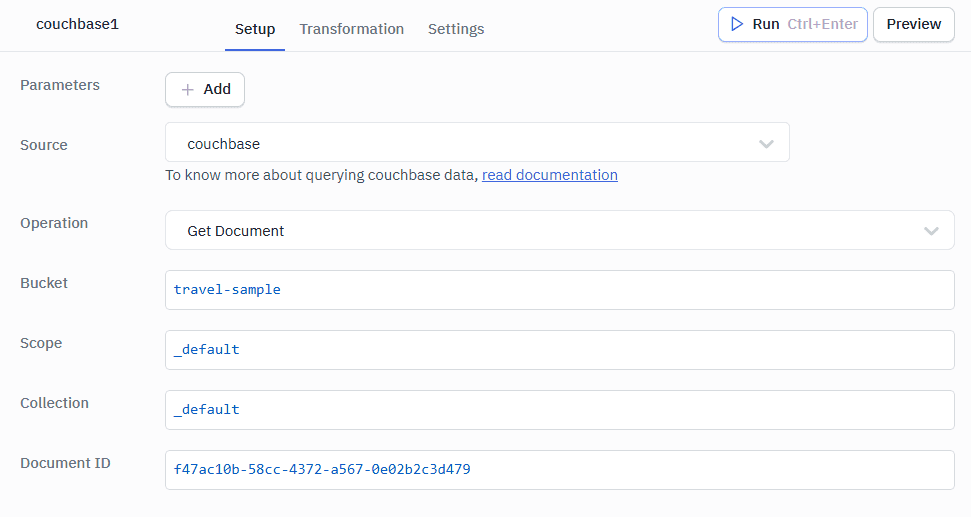

Step 5: View Airline Details (Get Document)

Let's add the ability to view a single airline's full document when a user clicks a row.

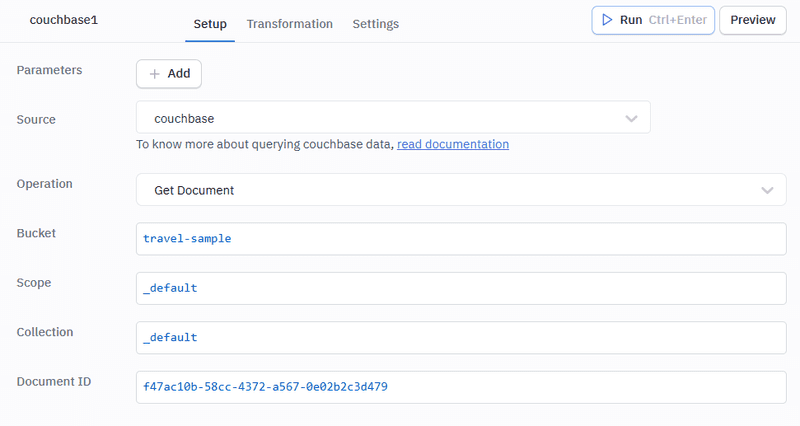

1. Create a new query named getAirline:
   • Operation: Get Document
   • Bucket: travel-sample
   • Scope: inventory
   • Collection: airline
   • Document ID: {{components.table1.selectedRow.doc_id}}

2. Drag a Modal component onto the canvas and add Text components inside it to display:

   • {{queries.getAirline.data.name}} — Airline name
   • {{queries.getAirline.data.country}} — Country
   • {{queries.getAirline.data.callsign}} — Callsign
   • {{queries.getAirline.data.iata}} — IATA code

3. On the Table component, add a Row clicked event handler:

   • Action: Run query → getAirline
   • Then Show modal → your modal component

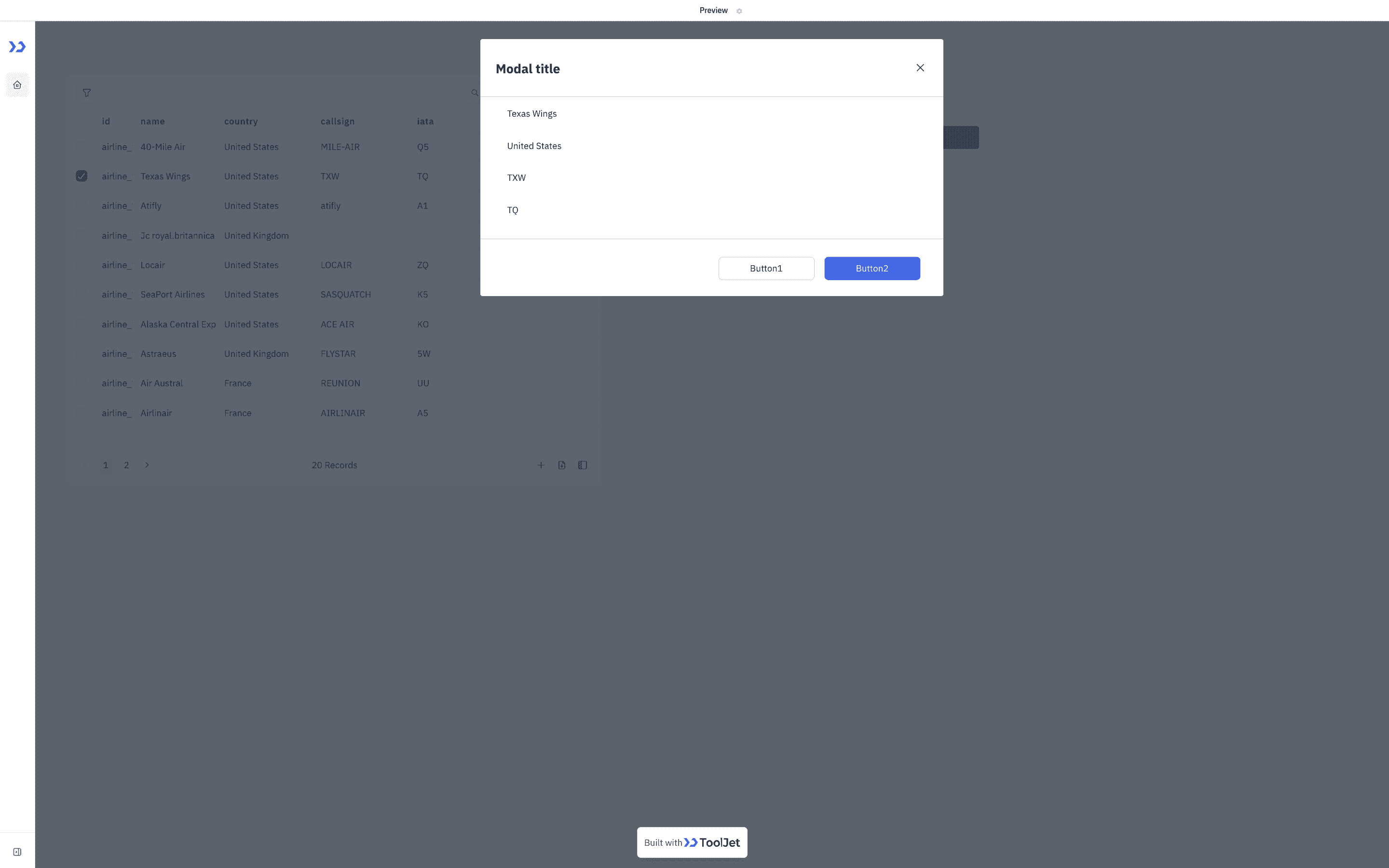

Now when you click any airline row, it fetches the full document and displays it in a modal:

Step 6: Create a New Airline (Create Document)

1. Drag a Button component above the table, label it "Add Airline"

2. Drag a Modal component for the creation form. Inside it, add:

   • Text Input: airlineName (label: "Airline Name")
   • Text Input: airlineCountry (label: "Country")
   • Text Input: airlineCallsign (label: "Callsign")
   • Text Input: airlineIata (label: "IATA Code")
   • Text Input: airlineIcao (label: "ICAO Code")
   • Text Input: airlineDocId (label: "Document ID", placeholder: "airline_9999")
   • Button: "Create" (to submit the form)

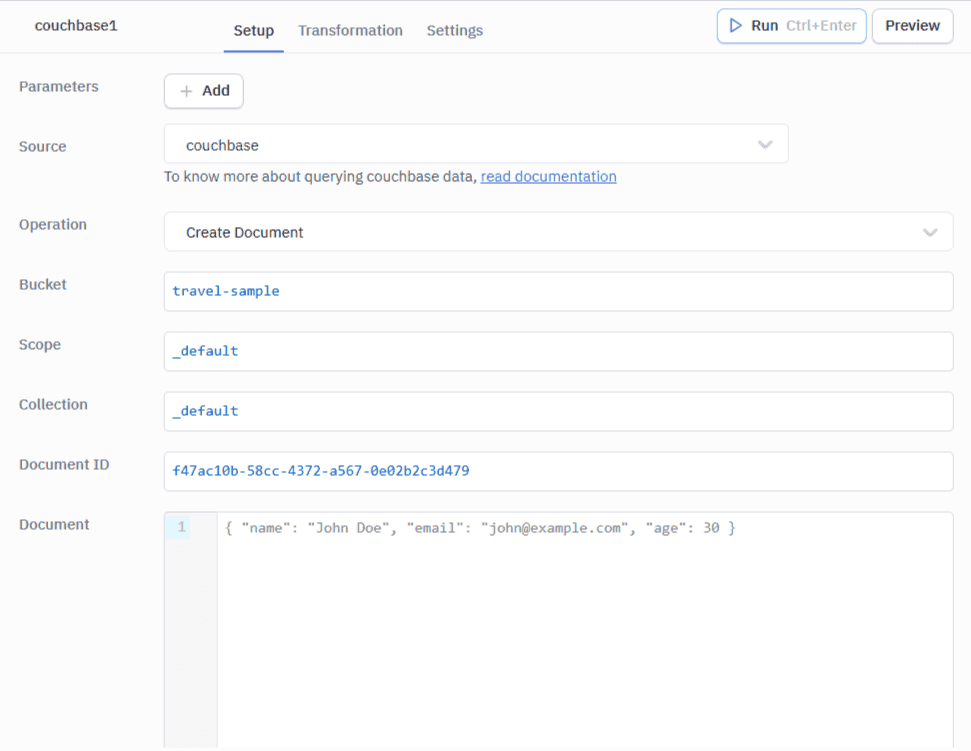

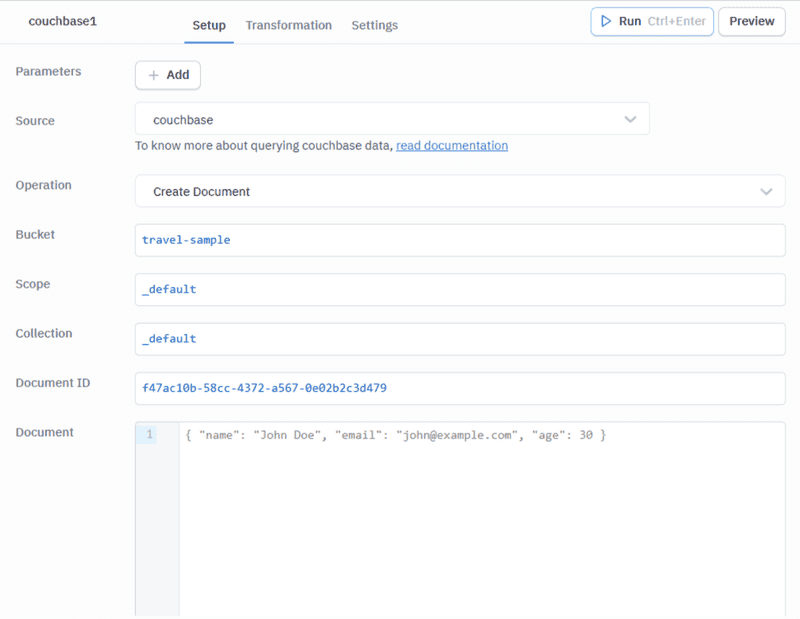

3. Create a new query named createAirline:

   • Operation: Create Document
   • Bucket: travel-sample
   • Scope: inventory
   • Collection: airline
   • Document ID: {{components.airlineDocId.value}}
   • Document:

{
  "type": "airline",
  "name": "{{components.airlineName.value}}",
  "country": "{{components.airlineCountry.value}}",
  "callsign": "{{components.airlineCallsign.value}}",
  "iata": "{{components.airlineIata.value}}",
  "icao": "{{components.airlineIcao.value}}"
}

4. Wire it up:
   • "Add Airline" button → Show modal (the creation form modal)
   • "Create" button inside modal → Run query createAirline, then Run query listAirlines (to refresh the table), then Hide modal

Test it: Click "Add Airline", fill in the form, click "Create". The new airline should appear in the table.

Step 7: Edit an Airline (Update Document)

1. Add an Actions column to the table with an "Edit" button

2. Create a new modal with the same form fields as Step 6, but pre-populated with the selected row's data:

   • Set each input's Default value to the corresponding table column, e.g.:
     • airlineNameEdit default: {{components.table1.selectedRow.name}}
     • airlineCountryEdit default: {{components.table1.selectedRow.country}}

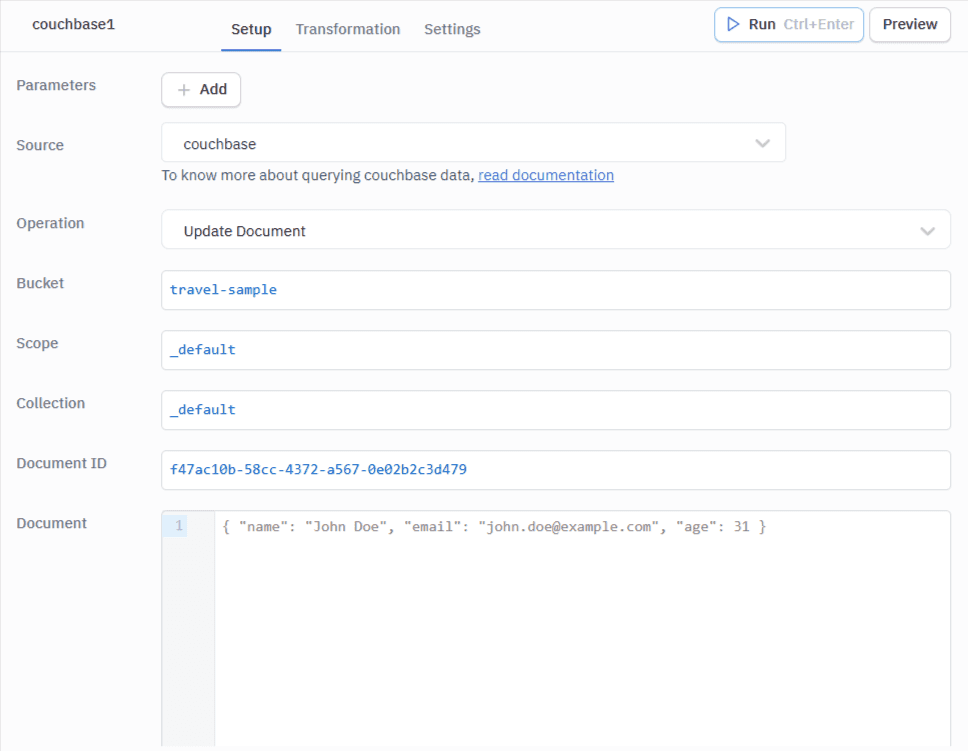

3. Create a new query named updateAirline:

   • Operation: Update Document
   • Bucket: travel-sample
   • Scope: inventory
   • Collection: airline
   • Document ID: {{components.table1.selectedRow.doc_id}}
   • Document:

{
  "type": "airline",
  "name": "{{components.airlineNameEdit.value}}",
  "country": "{{components.airlineCountryEdit.value}}",
  "callsign": "{{components.airlineCallsignEdit.value}}",
  "iata": "{{components.airlineIataEdit.value}}",
  "icao": "{{components.airlineIcaoEdit.value}}"
}

4. Wire the "Save" button to: Run query updateAirline → Run query listAirlines → Hide modal

Important: The Update operation performs a full document replacement (HTTP PUT), not a partial update. Make sure your document JSON includes all fields, not just the ones you changed.

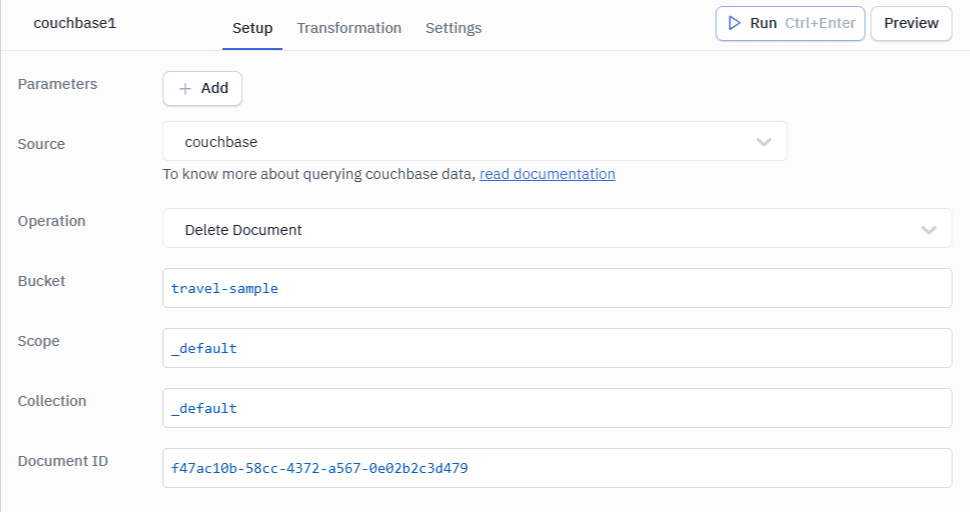

Step 8: Delete an Airline (Delete Document)

1. Add a "Delete" button in the table's Actions column

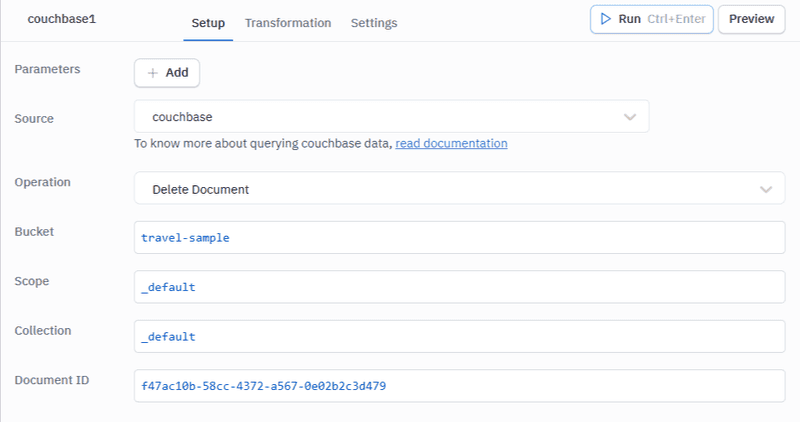

2. Create a new query named deleteAirline:

   • Operation: Delete Document
   • Bucket: travel-sample
   • Scope: inventory
   • Collection: airline
   • Document ID: {{components.table1.selectedRow.doc_id}}

3. Wire the "Delete" button to show a confirmation dialog, then:
   • Run query deleteAirline → Run query listAirlines (to refresh the table)

Step 9: Add Full-Text Search

Now let's add a search bar that uses Couchbase's Full-Text Search to find airlines by name.

Before continuing, ensure you have created the airline-name-index FTS index as described in the Prerequisites section.

Add Search to ToolJet

1. Drag a Text Input component above the table, label it "Search Airlines" (searchInput)

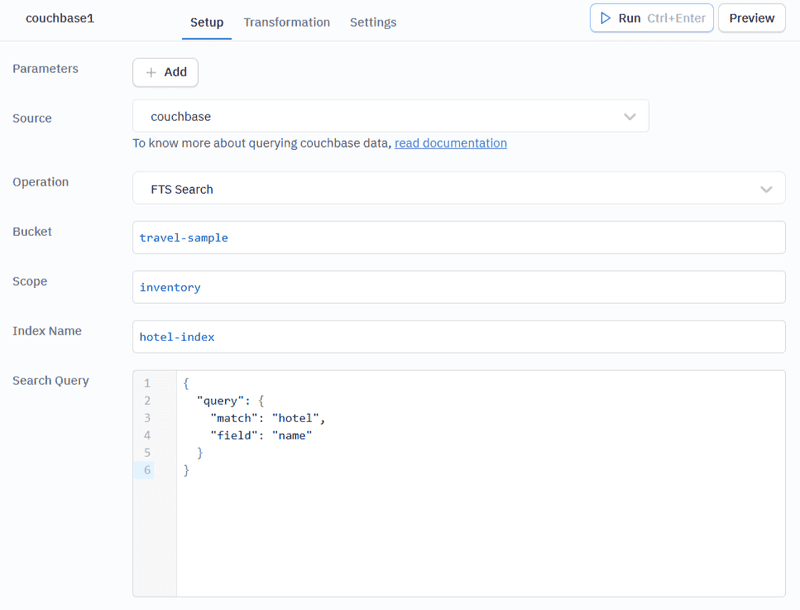

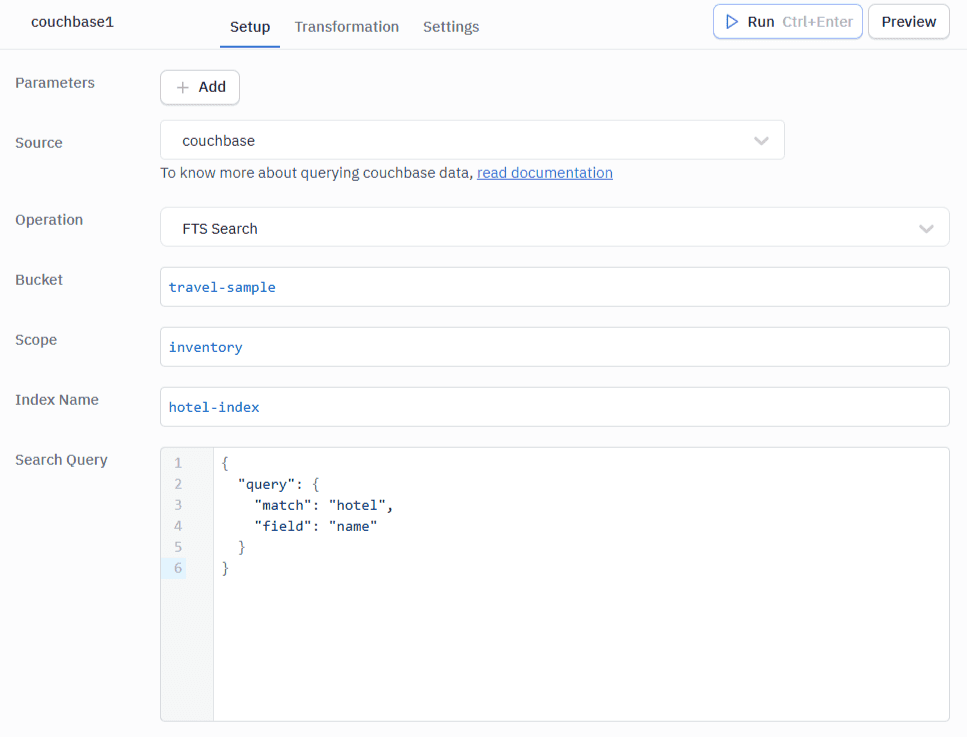

2. Create a new query named searchAirlines:

   • Operation: FTS Search
   • Bucket: travel-sample
   • Scope: inventory
   • Index Name: airline-name-index
   • Search Query:

{
  "query": {
    "match": "{{components.searchInput.value}}",
    "field": "name"
  },
  "fields": ["name", "country", "callsign"],
  "size": 20
}

3. Add an event handler on the search input: On change → Run query searchAirlines

4. Update the Table's Data to conditionally show search results or all airlines:

{{components.searchInput.value
  ? queries.searchAirlines.data.hits.map(hit => hit.fields)
  : queries.listAirlines.data.results}}

Now when you type in the search bar, it performs a real-time Full-Text Search against Couchbase and displays matching airlines.

Step 10: Deploy the App

1. Click the Deploy button (top-right, rocket icon)
2. Your app is now live with a shareable URL
3. Share the URL with your team — they can use it immediately

Conclusion

You've built a complete Airline Dashboard that demonstrates all 6 Couchbase operations in ToolJet:

Key Takeaways

• No backend code — ToolJet handles the API layer, UI rendering, and deployment
• Couchbase Data API — the plugin uses REST calls, making it compatible with both Capella and self-managed clusters
• SQL++ for analytics — parameterized queries keep your app secure
• FTS for search — real-time full-text search powered by Couchbase indexes

Next Steps

• Add vector search: Replace the FTS match query with a vector search query for semantic/AI-powered search
• Build more apps: Customer support tools, inventory managers, reporting dashboards — all on your Couchbase data
• Explore ToolJet components: Charts, maps, JSON viewers, and 50+ other widgets can visualize your Couchbase data in different ways
