Quickstart in Couchbase with PHP and Laravel

Learn to build a REST API in PHP using Laravel and Couchbase
Explore key-based operations and SQL++ querying using PHP SDK
Explore CRUD operations in action with Couchbase

Getting Started

Prerequisites

To run this prebuilt project, you will need:

Couchbase Capella cluster with travel-sample bucket loaded.
- To run this tutorial using a self managed Couchbase cluster, please refer to the appendix.
PHP 8.2 or higher installed
- Ensure that the PHP version is compatible with the Couchbase SDK.
Code Editor installed (Visual Studio Code, PhpStorm, or Sublime Text)
Composer command line

Source Code

git clone https://github.com/couchbase-examples/php-laravel-quickstart.git

Change Directory

cd php-laravel-quickstart

Install Dependencies

cd php-laravel-quickstart
composer install

Note: Composer automatically installs the required dependencies when building the project.

Initial Configuration

After installing dependencies, you need to set up the basic Laravel configuration:

Create the environment file:

cp .env.example .env

Generate application key:

php artisan key:generate

Couchbase Service Provider

The CouchbaseServiceProvider class is a Laravel service provider class responsible for setting up the connection to a Couchbase database in a Laravel application.

Application Environment

All configuration for communication with the database is read from environment variables. As a security best practice, you should set these values in your .env file:

DB_CONN_STR=<connection_string>
DB_USERNAME=<username>
DB_PASSWORD=<password>
DB_BUCKET=travel-sample

Replace the placeholder values with your actual Couchbase cluster details.

The connection string should be in the following format:

return [
    'host' => env('DB_CONN_STR', 'couchbase://127.0.0.1'),
    'username' => env('DB_USERNAME', 'Administrator'),
    'password' => env('DB_PASSWORD', 'password'),
    'bucket' => env('DB_BUCKET', 'travel-sample'),
];

For more information on the Laravel connection string, see the Database Configuration documentation.

Running The Application

Directly on the machine

At this point the application is ready, and you can run it via the command line:

php artisan serve

Note: Either the Couchbase Server must be installed and running on localhost or the connection string must be updated in the config/couchbase.php file.

Tip: If Swagger UI loads without endpoints, generate the docs:
php artisan l5-swagger:generate

Docker

Build the Docker image

docker build -t php-laravel-quickstart .

Run the Docker image

docker run -d --name laravel-container -p 8000:8000 \
  -e DB_CONN_STR=<connection_string> \
  -e DB_USERNAME=<username> \
  -e DB_PASSWORD=<password> \
  -e DB_BUCKET=travel-sample \
  php-laravel-quickstart

Note: Environment variables passed to the Docker container will override the default values in the configuration.

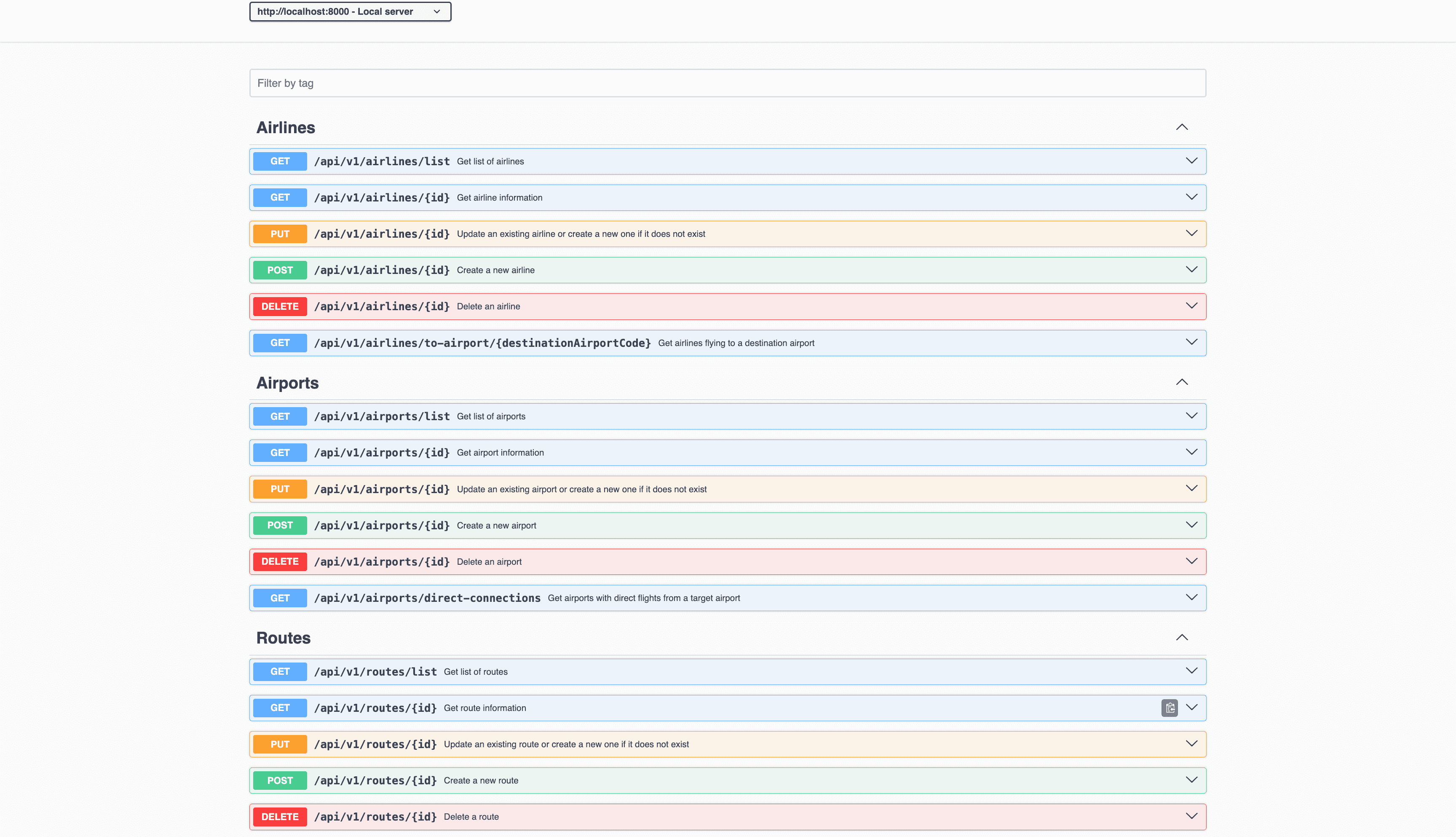

Once the application is running, you can access it in your browser at http://localhost:8000. Swagger UI is available at http://localhost:8000/api/documentation.

Verifying the Application

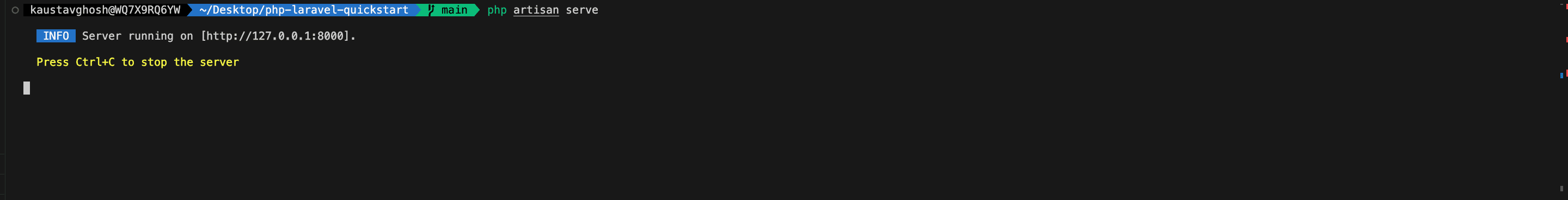

Once the application starts, you can see the details of the application on the logs.

The application will run on port 8000 of your local machine (http://localhost:8000). Open Swagger UI at http://localhost:8000/api/documentation to try the API endpoints. Swagger documentation is used in this demo to showcase the different API endpoints and how they can be invoked. More details on the Swagger documentation can be found in the appendix.

Data Model

For this tutorial, we use three collections, airport, airline and route that contain sample airports, airlines and airline routes respectively. The route collection connects the airports and airlines as seen in the figure below. We use these connections in the quickstart to generate airports that are directly connected and airlines connecting to a destination airport. Note that these are just examples to highlight how you can use SQL queries to join the collections.

Airline Document Structure

We will be setting up a REST API to manage some airline documents. The name field is the name of the airline. The callsign field is the callsign of the airline. The iata field is the IATA code of the airline. The icao field is the ICAO code of the airline. The country field is the country of the airline.

Our airline document will have a structure similar to the following example:

{
    "name": "Couchbase Airways",
    "callsign": "Couchbase",
    "iata": "CB",
    "icao": "CBA",
    "country": "United States"
}

Code Structure

Project Structure

.
├── app/
│   ├── Http/
│   │   └── Controllers/
│   │       ├── AirlineController.php
│   │       ├── AirportController.php
│   │       ├── RouteController.php
│   │       └── HotelController.php
│   ├── Models/
│   │   ├── Airline.php
│   │   ├── Airport.php
│   │   ├── Route.php
│   │   └── Hotel.php
│   └── Providers/
│       └── CouchbaseServiceProvider.php
├── config/
│   └── couchbase.php
├── routes/
│   └── api.php
└── tests/
    └── Feature/
        ├── AirlineTest.php
        ├── AirportTest.php
        ├── RouteTest.php
        └── HotelTest.php

Key Components

Controllers: Handle HTTP requests and responses for each entity
Models: Define data structures and business logic for Couchbase operations
Service Provider: Configures Couchbase connection and collection references
Tests: Integration tests for all API endpoints

Airline Entity

For this tutorial, we will focus on the airline entity to demonstrate CRUD operations and SQL++ queries.

We will be setting up a REST API to manage airline documents:

POST Airline – Create a new airline
GET Airline – Read specified airline
PUT Airline – Update specified airline
DELETE Airline – Delete airline
List Airlines – Get all airlines. Optionally filter the list by country
Airlines to Destination – Get airlines flying to a destination airport

For CRUD operations, we will use the Key-Value operations that are built into the Couchbase SDK to create, read, update, and delete a document. Every document will need an ID (similar to a primary key in other databases) to save it to the database. This ID is passed in the URL. For other endpoints, we will use SQL++ to query for documents.

POST Airline

Open the AirlineController.php file and navigate to the store method. The request data is validated and then passed to the model to save the airline document.

// store method in AirlineController.php
public function store(Request $request, $id)
{
    if ($errorResponse = $this->validateRequest($request)) {
        return $errorResponse;
    }
    try {
        $data = $request->only($this->allowedAttributes);
        $airline = new Airline($data);
        $airline->saveAirline($id);
        return response()->json(['message' => 'Airline created successfully'], 201);
    } catch (\Exception $e) {
        return response()->json(['message' => 'Internal Server Error'], 500);
    }
}

We call the saveAirline method in the Airline model, which uses the upsert method from the Couchbase SDK. The upsert method inserts a new document or updates an existing one.

// saveAirline method in Airline model
public function saveAirline($id)
{
    $data = $this->attributesToArray();
    unset($data['id']);
    $this->bucket->scope('inventory')->collection('airline')->upsert($id, $data);
}

GET Airline

Navigate to the show method in the AirlineController.php file. This method retrieves a specific airline document using its ID.

// show method in AirlineController.php
public function show($id)
{
    try {
        $airline = Airline::findAirline($id);
        if (!$airline) {
            return response()->json(['message' => 'Airline not found'], 404);
        }
        return response()->json($airline);
    } catch (\Exception $e) {
        return response()->json(['message' => 'Internal Server Error'], 500);
    }
}

We call the findAirline method in the Airline model, which uses the get method from the Couchbase SDK for key-value retrieval.

// findAirline method in Airline model
public static function findAirline($id)
{
    $instance = new static;
    $document = $instance->bucket->scope('inventory')->collection('airline')->get($id);
    $data = $document->content();
    return new static($data);
}

PUT Airline

The PUT operation uses the same store method as POST, leveraging the upsert functionality to either update an existing document or create a new one if it doesn't exist.

// Same store method handles both POST and PUT
$airline->saveAirline($id); // Uses upsert internally

The upsert operation in Couchbase automatically handles both insert and update scenarios, making it perfect for PUT requests.

DELETE Airline

Navigate to the destroy method in the AirlineController.php file. This method deletes an airline document by its ID.

// destroy method in AirlineController.php
public function destroy($id)
{
    try {
        $airline = Airline::findAirline($id);
        if (!$airline) {
            return response()->json(['message' => 'Airline not found'], 404);
        }
        Airline::destroyAirline($id);
        return response()->json(['message' => 'Airline deleted successfully'], 200);
    } catch (\Exception $e) {
        return response()->json(['message' => 'Internal Server Error'], 500);
    }
}

We call the destroyAirline method in the Airline model, which uses the remove method from the Couchbase SDK.

// destroyAirline method in Airline model
public static function destroyAirline($id)
{
    $instance = new static;
    $instance->bucket->scope('inventory')->collection('airline')->remove($id);
}

List Airlines

Navigate to the index method in the AirlineController.php file. This method retrieves a list of airlines with optional country filtering and pagination.

// index method in AirlineController.php
public function index(Request $request)
{
    try {
        $offset = $request->query('offset', 0);
        $limit = $request->query('limit', 10);
        $country = $request->query('country');
        $airlines = Airline::getAllAirlinesByCountry($country, $offset, $limit);
        return response()->json($airlines);
    } catch (\Exception $e) {
        return response()->json(['message' => 'Internal Server Error'], 500);
    }
}

We call the getAllAirlinesByCountry method in the Airline model, which uses SQL++ queries to retrieve filtered results.

// getAllAirlinesByCountry method in Airline model
public static function getAllAirlinesByCountry($country, $offset = 0, $limit = 10)
{
    $query = "SELECT * FROM `travel-sample`.`inventory`.`airline`";
    if ($country) {
        $query .= " WHERE country = '$country'";
    }
    $query .= " LIMIT $limit OFFSET $offset";

    $result = $instance->bucket->scope('inventory')->query($query);
    return collect($result->rows());
}

Airlines to Destination

This endpoint demonstrates SQL++ queries with JOINs to find airlines that fly to a specific destination airport.

// getAirlinesToAirport method in Airline model
public static function getAirlinesToAirport($destinationAirportCode, $offset = 0, $limit = 10)
{
    $query = "
    SELECT air.callsign, air.country, air.iata, air.icao, META(air).id AS id, air.name
    FROM (
        SELECT DISTINCT route.airlineid AS airlineId
        FROM `travel-sample`.`inventory`.`route` AS route
        WHERE route.destinationairport = '$destinationAirportCode'
    ) AS subquery
    JOIN `travel-sample`.`inventory`.`airline` AS air ON META(air).id = subquery.airlineId
    LIMIT $limit OFFSET $offset";

    $result = $instance->bucket->scope('inventory')->query($query);
    return collect($result->rows());
}

This query demonstrates advanced SQL++ features:

Subquery: Finds distinct airline IDs from routes to the destination
JOIN: Connects route and airline collections
META(): Accesses document metadata to get the document ID

Running The Tests

This command will execute all the test cases in your project.

php artisan test

Project Setup Notes

This project was based on the standard Laravel project.

A full list of packages are referenced in the composer.json file.

Contributing

Contributions are welcome! If you'd like to contribute to this project, please fork the repository and create a pull request.

Appendix

Extending API by Adding New Entity

If you would like to add another entity to the APIs, follow these steps:

Create the new entity (collection) in the Couchbase bucket: You can create the collection using the SDK or via the Couchbase Server interface.

Define the model: Create a new model in the app/Models directory, similar to the existing Airline model. Note that this quickstart already includes a Hotel model as an example. For a new entity, you would create a similar structure:

namespace App\Models;

use Illuminate\Database\Eloquent\Model;

class YourEntity extends Model
{
    protected $bucket;

    protected $fillable = [
        // Define your entity fields here
    ];

    public function __construct(array $attributes = [])
    {
        parent::__construct($attributes);
        $this->bucket = app('couchbase.bucket');
    }

    // Add methods for querying, saving, and deleting data
}

Define the controller: Create a new controller in the app/Http/Controllers directory, similar to the existing AirlineController. For example, you can create a file HotelController.php:

namespace App\Http\Controllers;

use Illuminate\Http\Request;
use App\Models\Hotel;

class HotelController extends Controller
{
    // Add methods for handling HTTP requests for the Hotel entity
}

Define the routes: In the routes/api.php file, define the routes for the new entity similar to the existing routes for airlines:

Route::prefix('v1/hotels')->group(function () {
    Route::get('list', 'HotelController@index');
    Route::get('{id}', 'HotelController@show');
    Route::post('{id}', 'HotelController@store');
    Route::put('{id}', 'HotelController@update');
    Route::delete('{id}', 'HotelController@destroy');
});

Integration tests: Create a new test class in the tests/Feature directory, similar to the existing tests. For example, you can create a file HotelIntegrationTest.php:
```
namespace Tests\Feature;

use Tests\TestCase;

class HotelIntegrationTest extends TestCase
{
    // Add test methods for the Hotel endpoints
}
```

Running Self Managed Couchbase Cluster

If you are running this quickstart with a self-managed Couchbase cluster, you need to load the travel-sample data bucket in your cluster and generate the credentials for the bucket.

You need to update the connection string and the credentials in the config/couchbase.php file:

DB_CONN_STR=couchbase://<your-couchbase-server>
DB_USERNAME=<your-username>
DB_PASSWORD=<your-password>
DB_BUCKET=travel-sample

Replace <your-couchbase-server>, <your-username>, and <your-password> with your actual Couchbase server details and credentials.

NOTE: Couchbase must be installed and running prior to running the Laravel app.

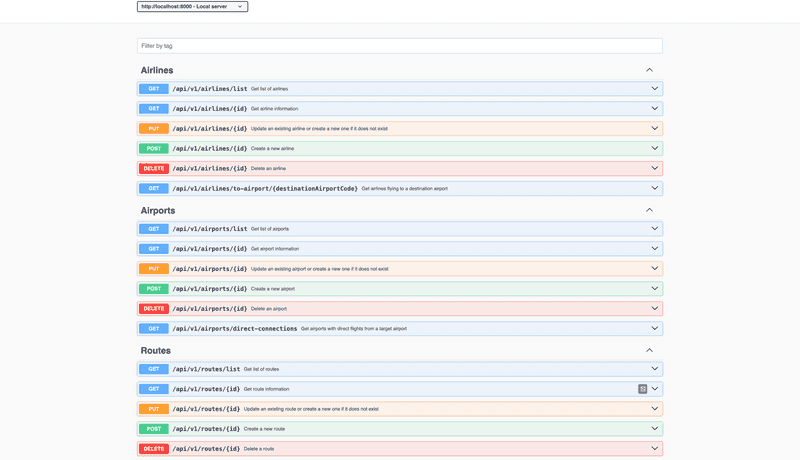

Swagger Documentation

Swagger documentation provides a clear view of the API including endpoints, HTTP methods, request parameters, and response objects.

Click on an individual endpoint to expand it and see detailed information. This includes the endpoint's description, possible response status codes, and the request parameters it accepts.

Trying Out the API

You can try out an API by clicking on the "Try it out" button next to the endpoints.

Parameters: If an endpoint requires parameters, Swagger UI provides input boxes for you to fill in. This could include path parameters, query strings, headers, or the body of a POST/PUT request.
Execution: Once you've inputted all the necessary parameters, you can click the "Execute" button to make a live API call. Swagger UI will send the request to the API and display the response directly in the documentation. This includes the response code, response headers, and response body.

Models

Swagger documents the structure of request and response bodies using models. These models define the expected data structure using JSON schema and are extremely helpful in understanding what data to send and expect.

Contents
