Connect Looker Studio to Couchbase Columnar using Views and Custom Queries

Connect Google Looker Studio to Couchbase Columnar using Tabular Analytics Views (TAVs) or custom queries
Create Tabular Analytics Views in Capella for stable datasets or use custom SQL++ queries for flexibility
Learn authentication, configuration, schema inference, and troubleshooting

Overview

Connect Looker Studio to Couchbase Columnar for data analysis and visualization. This connector supports two modes: Tabular Analytics Views (TAVs) for stable, optimized data sources, and custom queries for flexible data exploration.

Workflow: Either create TAVs in Couchbase Capella for consistent reporting, or use custom SQL++ queries for ad-hoc analysis. TAVs provide a stable, schema-defined interface that's optimized for BI tools, while custom queries offer maximum flexibility for complex data operations.

The connector authenticates with Basic Auth to the Columnar API (/api/v1/request) and infers schema automatically using array_infer_schema so Looker Studio fields are created with reasonable types.

Prerequisites

To use this connector, you need:

Couchbase Columnar Access

Sign up: Visit Couchbase Capella to create your account
Free Trial: Start with a free trial to test the connector
Columnar Service: Enable Columnar analytics in your Capella cluster
Pricing: Columnar is billed based on compute and storage usage. See Capella Pricing for details

Technical Requirements

A Couchbase Columnar deployment reachable from Looker Studio. For setup information, see Getting Started with Couchbase Columnar.
A database user with permissions to read from the target Tabular Analytics Views (TAVs) and execute queries.
Network access from Looker Studio to your Columnar host.

Installation

To add the Couchbase Columnar connector to your Looker Studio reports:

Open Looker Studio: Go to Looker Studio
Create or Open Report: Start a new report or open an existing one
Add Data Source: Click "Add data" or the "+" button
Find Connector: Search for "Couchbase Columnar" in the connector gallery
Authorize: Grant necessary permissions when prompted
Configure: Follow the authentication and configuration steps below

Authentication

When adding the data source, provide:

Path: The Columnar host. Example:
- Capella host: cb.<your-host>.cloud.couchbase.com
Username and Password: Database credentials.

The connector validates credentials by running a lightweight test query (SELECT 1 AS test;).

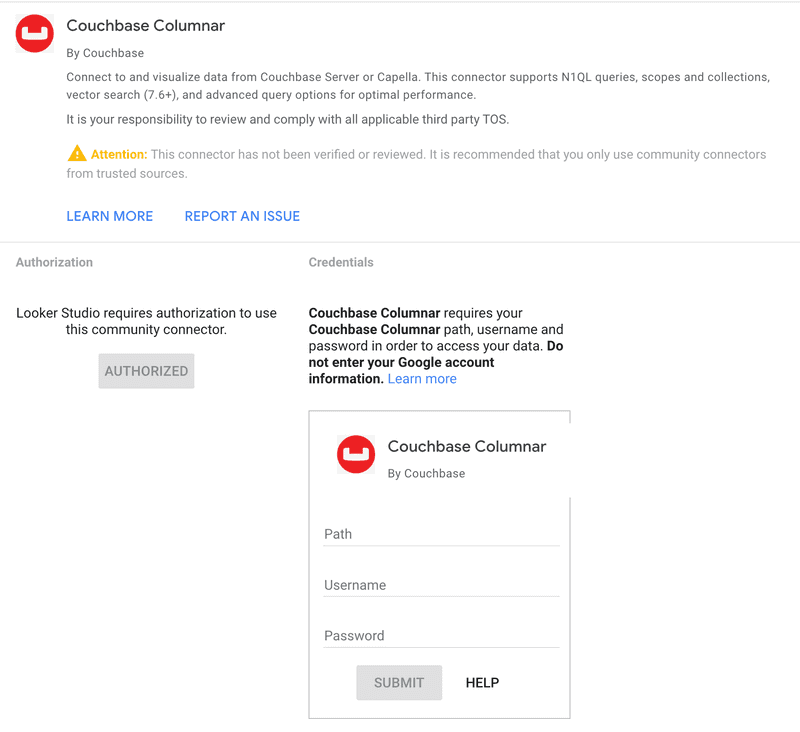

When you add the Couchbase Columnar connector in Looker Studio, you'll see the authentication screen:

Create Tabular Analytics Views (TAVs) in Capella (Recommended)

For the "By View" mode, create Tabular Analytics Views in Capella:

Open Analytics Workbench: In your Capella cluster, go to the Analytics tab and launch the Analytics Workbench.
Create your SQL++ query: Write a query that returns the data structure you want for reporting:

-- Example airport query for TAV creation
SELECT a.airportname,
       a.city,
       a.country,
       a.faa,
       a.icao
FROM `travel-sample`.`inventory`.`airport` AS a
WHERE a.country = 'United States'
LIMIT 100;

Test the query: Run your query to verify it returns the expected results and data types.
Create the TAV:
- Click Save as View in the Analytics Workbench
- Select Annotate for Tabular View
- Define the schema: Specify column names, data types (STRING, NUMBER, BOOLEAN), and mark primary key fields
- Name your view: Use a descriptive name like airports_us_flattened
- Save: The TAV will be created with enforced schema
Verify creation: Your TAV will appear in the database browser under the specified scope and can be queried like a table.

For details, see Tabular Analytics Views and Buckets, Scopes, and Collections.

Configuration

Choose your mode in the configuration screen:

Configuration Mode: Choose between By View or Use Custom Query.

Mode: By View (TAV)

Couchbase Database, Scope, View: Selected from dropdowns that automatically discover your available databases, scopes, and views from your Columnar instance.
Maximum Rows: Optional limit for returned rows; leave blank for no limit.

What runs:

Data: SELECT <requested fields or *> FROM \database`.`scope`.`view` [LIMIT n]`
Schema: SELECT array_infer_schema((SELECT VALUE t FROM \database`.`scope`.`view` [LIMIT n])) AS inferred_schema;`

Mode: By Custom Query

Custom Columnar Query: Enter your own SQL++ query directly in a text area.
Maximum Rows: Not applicable (control limits within your query using LIMIT).

Example custom query:

SELECT airline.name AS airline_name,
       airline.iata AS iata_code,
       airline.country AS country,
       COUNT(*) AS route_count
FROM `travel-sample`.`inventory`.`airline` AS airline
JOIN `travel-sample`.`inventory`.`route` AS route
  ON airline.iata = route.airline
WHERE airline.country = "United States"
GROUP BY airline.name, airline.iata, airline.country
LIMIT 100;

What runs:

Data: Your exact custom query as entered
Schema: SELECT array_infer_schema((your_custom_query)) AS inferred_schema;

After authentication, configure the connector by selecting your database, scope, and view:

Schema and Field Types

The connector converts inferred types to Looker types:
- number → NUMBER (metric)
- boolean → BOOLEAN (dimension)
- string/objects/arrays/null → STRING/TEXT (dimension)
Nested fields are flattened using dot and array index notation where possible (for example, address.city, schedule[0].day). Unstructured values may be stringified.

⚠️ Schema Inference Notes: For TAVs, schema inference uses array_infer_schema on the entire dataset unless you specify Maximum Rows (which adds a LIMIT clause for sampling). Field types are inferred from the analyzed data and may miss variations (e.g., fields containing both text and numbers in different documents). If schema inference fails, ensure your TAV contains data and consider adding a Maximum Rows limit for faster sampling during testing.

Once your schema is configured, you can customize the fields in your Looker Studio dashboard:

Data Retrieval

Only requested fields are projected. For nested fields, the connector fetches the required base fields and extracts values server-side within the Apps Script environment.
Row limits:
- View mode: Maximum Rows controls LIMIT (blank = no limit).

Tips and Best Practices

Prefer Tabular Analytics Views for BI tooling: TAVs provide a stable, optimized interface with predefined schemas, making them ideal for consistent reporting and visualization. They also offer better performance than ad-hoc queries.
Use LIMIT while exploring: Start with smaller datasets (e.g., LIMIT 1000) to test connectivity and schema inference quickly. Remove or increase limits once you're satisfied with the data structure.

Troubleshooting

Authentication failure: Check host, credentials, and network reachability to Columnar.
Schema inference errors: Ensure your TAV exists and contains data. Try adding a LIMIT clause for faster sampling (e.g., LIMIT 100).
API error from Columnar: Review the response message in Looker Studio and verify TAV names, permissions, and that the view is properly created in Capella.
Empty or missing TAV: Verify that your Tabular Analytics View was saved correctly in the Analytics Workbench and contains data.
Schema mismatch: If fields appear with unexpected types, verify your TAV schema definition matches your query results. TAVs enforce schema consistency, so ensure your query produces data that matches the defined column types.

Next Steps

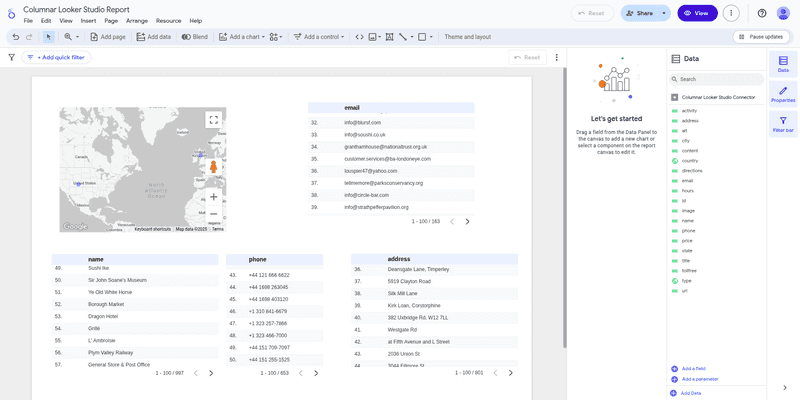

Once your connector is configured and fields are set up, create reports by dragging and dropping tables from the side pane onto the main canvas:

Build charts in Looker Studio using your TAV-backed fields.
Iterate on Views/queries to shape the dataset for analytics.
Explore the rich visualization options available in Looker Studio to create compelling dashboards from your Columnar data.
